Four power configurations are available 3.5kw/7kw/11kw/22kw
Support home or business

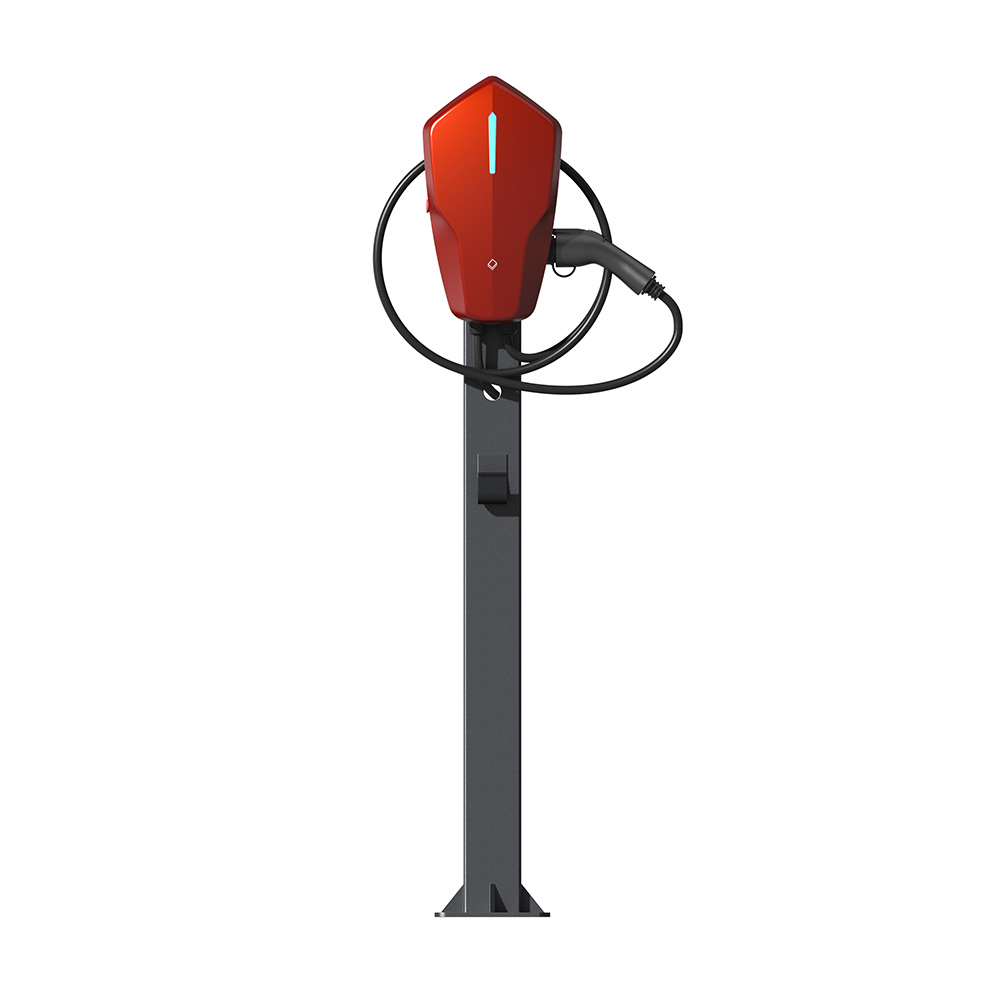

Supports wall hanging or column installation
Line length customization
Multiple charging start modes
Multiple protection
Suitable for a variety of locations

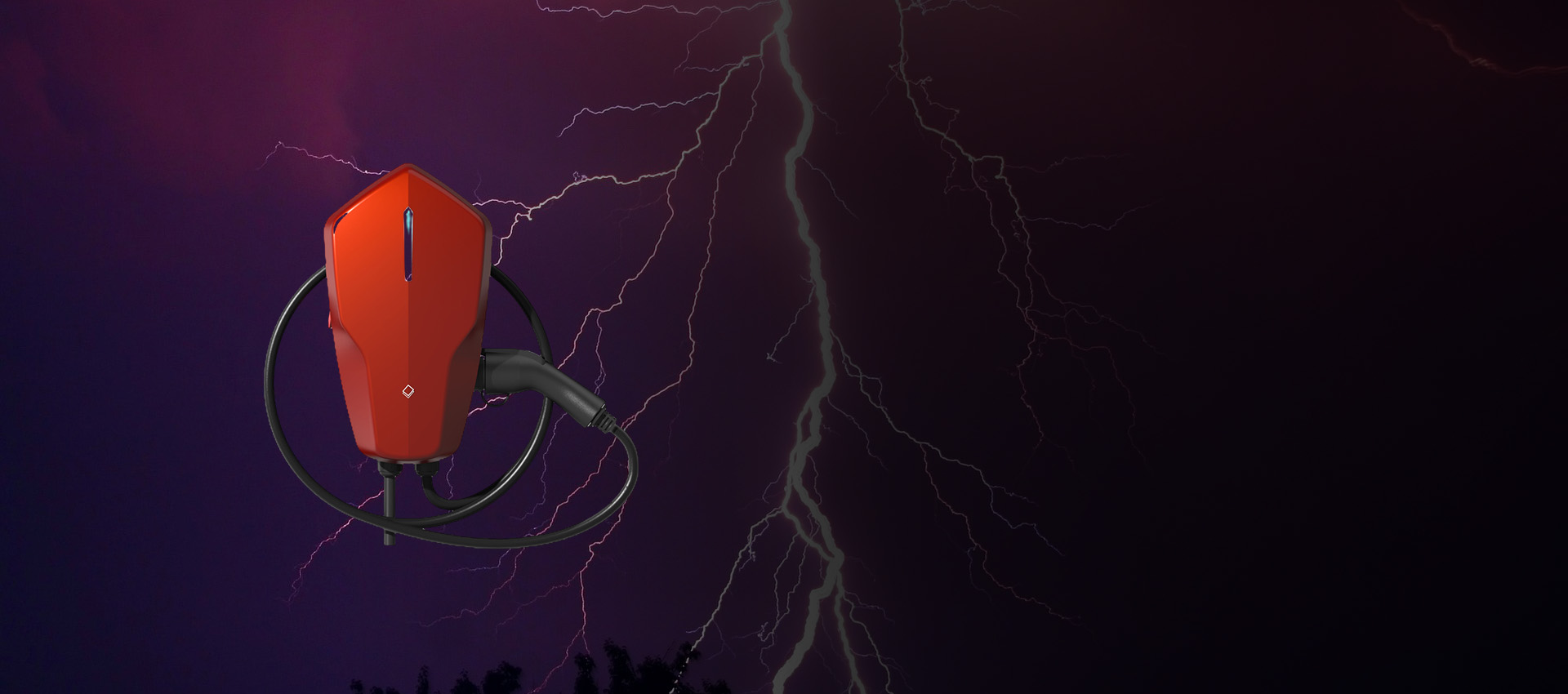

Mode3 EVSE AC Charger Pile
Iron Man Series
Iron Man Series
Product advantage
For charging electric vehicles with on-board chargers, mainly suitable for large and small electric vehicle charging stations; All kinds of public places with electric vehicle parking Spaces, such as urban residential areas, shopping plazas, electric power business places, etc.; High-speed service areas, stations, docks and other transportation hub areas.
Product advantage
For charging electric vehicles with on-board chargers, mainly suitable for large and small electric vehicle charging stations; All kinds of public places with electric vehicle parking Spaces, such as urban residential areas, shopping plazas, electric power business places, etc.; High-speed service areas, stations, docks and other transportation hub areas.
Equipment parameter
S/N | Functional Items 功能性項目 | Parameter 參數 | |||
Model 型號 | Iron Man 22 | Iron Man 11 | Iron Man 07 | Iron Man 35 | |
1 | Input Cable Structure 輸入電纜結構 | 5x6mm2&1m | 5x2.5mm2&1m | 3x6mm2&1m | 3x2.5mm2&1m |
2 | Weight 重量 | 4.9kg | 4.4kg | 4.6kg | 4.1kg |
3 | Input Voltage 輸入電壓 | 400V±15% | 400V±15% | 230V±15% | 230V±15% |
4 | Output Voltage 輸出電壓 | 400V±15% | 400V±15% | 230V±15% | 230V±15% |
5 | Frequency 頻率 | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
6 | Rated Output Current 額定輸出電流 | 32A | 16A | 32A | 16A |
7 | Rated Output Power 額定輸出功率 | 22KW | 11KW | 7KW | 3.5KW |
8 | Insulation Resistance 絕緣電阻 | DC 500V≥10M? | |||
9 | Dielectric Strength 介電強度 | DC 2800V≤10mA | |||
10 | Overcurrent Protection 過流保護 | 35.2A | 18A | 35.2A | 18A |
11 | Grounding Protection 接地保護 | √ | |||
12 | Adhesion Protection 附著力保護 | √ | |||
13 | Operating Temperature 工作溫度 | -25℃~+50℃ | |||
14 | Storage Temperature 儲存溫度 | -40℃~+70℃ | |||
15 | Ambient Humidity 環境濕度 | ≤95% non-condensing | |||
16 | Protection Class 防護等級 | IP55 | |||
17 | Display Method 顯示方法 | LED Indicator Light | |||
18 | Start-Stop Charging 啟停充電 | Instant Charging & Swipe Card Charging & App Charging | |||
19 | Charging Cable Length 充電電纜長度 | 5m | |||
20 | Installation Mode 安裝方式 | Wall-Mounted or Column | |||
21 | Product Size 產品尺寸 | 241X430X141（WXHXD） | |||
