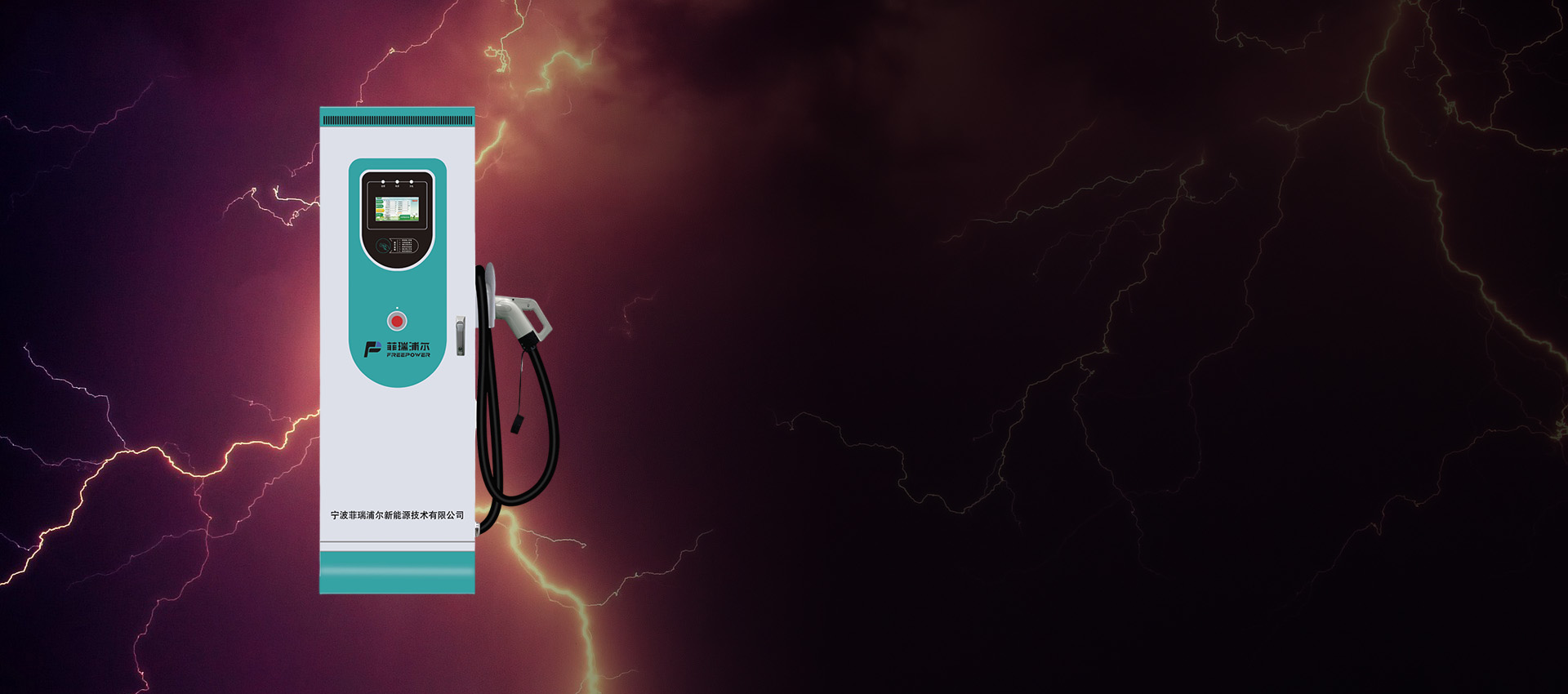

Mode4-EVSE-DC-Charger-Pile
FPDC-S series
FPDC-S series
Safe and reliable: through CQC, Cape certification, with multiple protection functions, more stable charging
Wide adaptability: The new national standard compatible design, to meet the charging needs of different models, suitable for 99% of the market national standard electric vehicles
Strong compatibility: compatible with multiple platforms, can be directly connected to Wejingyun, cloud fast charge and other platforms, compatible with multi-brand charging modules
No debugging: before the factory debugging is completed, power directly used, no secondary debugging
Widely used: suitable for bus stations, logistics parks, social stations and other centralized charging station places
Efficient output: 40KW fast charging, power factor up to 99%
FPDC-S series
Product advantage
Product advantage
Equipment parameter

S/N

序號

Function Items

功能性項目

Parameter

參數

1

Model

型號

FPDC30K-S

FPDC40K-S

2

Rated Power

額定功率

30KW

40KW

3

Number Of Guns

槍數

Single Gun

Double Gun

Single Gun

Double Gun

4

Max. Output Current Of A Single Gun

單槍最大輸出電流

100A

50A

125A

5

Weight

重量

≈95kg

≈118kg

≈101kg

≈118kg

6

Design Criteria

設計標準

GB/T 18487、GB/T 20234

7

Body Size（mm）

機身尺寸

550X1624X195（WXHXD）

8

Man-Machine Interface

人機界面

7“ LCD+LED

9

Networking Mode

聯網方式

Ethernet、4G(optional)

10

Charging Mode

充電模式

Automatic Charging、By Time、By Power、By Amount

11

Starting Mode

啟動方式

Swipe Card、Wechat Scan Code、VIN、Password

12

Protection Function

保護功能

Short Circuit、Over Temperature、Over Current、Leakage、Under Voltage

13

Charging Mode

充電模式

Full Power Charge

14

Cloud Platform

云平臺

Cloud Fast Charging、Weijing Cloud、DAK Cloud、E-Charging

15

Input Voltage

輸入電壓

AC 380V±20%

16

Input Frequency

輸入頻率

50Hz±10%

17

Output Voltage Range

輸出電壓范圍

DC 150~750V/1000V Continuously Adjustable

18

Line Length

槍線長度

5m

19

Output Voltage Tolerance

輸出電壓誤差

≤±0.5%

20

Output Current Tolerance

輸出電流誤差

≤±1.0%

21

Voltage Regulation Accuracy

穩壓精度

≤±0.5%

22

Current Regulation Accuracy

穩流精度

≤±1.0%

23

Harmonic Content

諧波含量

≤5%

24

Power Factor

功率因數

≥0.99（Over 50% Load）

25

Max, Efficiency

最高效率

≥95%

26

Electric Energy Measurement

電能計量

Level 1.0

27

Insulation Resistance

絕緣電阻

≥20M?

28

Noise

噪音

≤65dB

29

Class Of Protection

防護等級

IP54

30

Use Environment

使用環境

Indoor or Outdoor

31

Cooling Mode

冷卻方式

Air Cooling

32

Operation Temperature

運行溫度

-20℃~+50℃

33

Storage Temperature

儲存溫度

-40℃~+70℃

34

Relative Humidity

相對濕度

5%~95% No Condensation

35

Altitude

海拔高度

≤2000m

36

Installation Mode

安裝方式

Floor Mount
